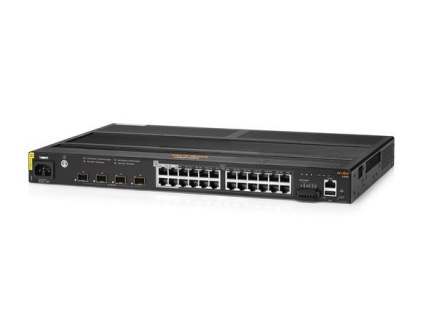

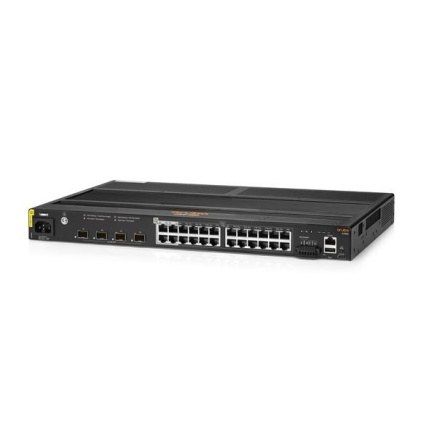

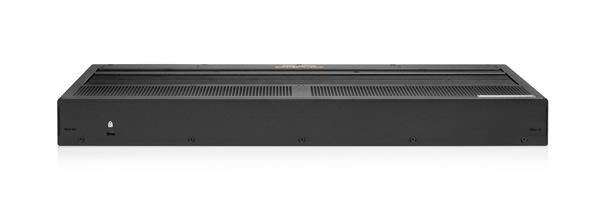

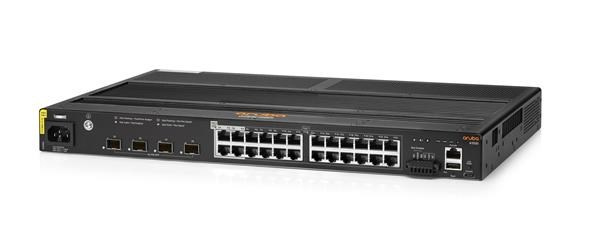

Aruba 4100i 24-port 1GbE (20-port Class 4 POE and 4-port Class 6 POE) 4-port SFP+ Switch

Aruba 4100i 24-port 1GbE (20-port Class 4 POE and 4-port Class 6 POE) 4-port SFP+ Switch (JL818A)

Description

4x ports 100M/1G BaseT Class 6 PoE ports supporting up to 60W per port

20x ports 100M/1G BaseT Class 4 PoE ports supporting up to 30W per port

4x 1/10G SFP ports

Supports PoE Standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W)

1x USB-C Console Port

1x RJ Console

1x USB Type A Host port

1x Alarm socket

Power Supplies

Fixed internal power supply (300W)

240W of PoE Power (no de-rating)

Fans

Fanless

Physical Characteristics

Dimensions

(H) 44 mm x

(W) 444.5 mm x

(D) 304.4 mm

1.73" x 17.5" x 12.0"

Weight

6.50 kg (14.33 lbs)

Mounting And Enclosure

Cable management kit included. 2-post rack mounting kit included.

4-post rack mounting kit available separately

Additional Specifications

CPU

Dual Core ARM Cortex A9 @ 1016 Mhz

Memory And Flash

4 GB DDR3

32 GB eMMC

Packet Buffer

12.38MB (4.5MB Ingress/7.875MB Egress)

Performance

Model Switching Capacity

up to 128 Gbps

Model Throughput Capacity

up to 95 Mpps

Average Latency (LIFO-64-bytes packets)

1 Gbps: 1.585µSec , 10 Gbps: 1.243µSec

Switched Virtual Interfaces (dual stack)

16

IPv4 host table (ARP)

756

IPv6 host table (ND)

576

IPv4 unicast routes

576

IPv6 unicast routes

576

MAC Table Size

8192

IGMP Groups

512

MLD groups

512

IPv4/IPv6/MAC ACL entries (ingress)

256 / 128 / 256

Environment

Operating temperature

-40°C to 60°C, 0m/s (-40°F to 140°F, 0 LFM)

-40°C to 70°C, 0.2m/s (-40°F to 158°F, 40 LFM)

-34°C to 75°C, 1m/s (-29.2°F to 167°F, 200 LFM)

Non-Operating Storage relative humidity

5% to 95%, non-condensing

Max Operating Altitude

up to 4.2 km (13800 ft) Max

Max non-operating Altitude

4.6 km (15000 ft) Max

Electrical Characteristics

Frequency

50Hz/60Hz

AC voltage

100V-240V

DC Input Voltage

N/A

Current

max 3.9A/1.9A (240W PoE)

Maximum heat dissipation BTU/hr

117 BTU/hr at 230V - Room temperature

(25°C)

Power Consumption

(JL819A, JL820A- 230VAC)

(JL821A- 48VDC)

Idle: 23W

100% Traffic Rate: 34W

100% Traffic Rate (w/ heater): 62W

*Heater will only turn on at extreme low

temperature condition

Safety

Europe:

EN 60950-1:2006 + A11:2009 + A1:2010 +

A12:2011 + A2:2013

EN 62368-1, Ed.2:2014

North America:

UL 62368-1, 2nd Edition

CAN/CSA C22.2 No. 62368-1-14

Worldwide:

IEC 60950-1:2005 Ed.2 + Am 1:2009 + A2:2013

IEC 62368-1:2014

EN/IEC 60825-1:2014 Class 1

UL/IEC 61010-2-201

GB 4943.1:2011

CNS 14336-1

K 60950-1

EMC

Europe:

EN 55011:2010/CISPR 11, Class A

EN 55032:2015/CISPR 32, Class A

EN 55035:2017/CISPR 35

EN 61000-3-2:2014, Class A

EN 61000-3-3:2013

US:

FCC CFR 47 Part 15: 2018 Class A

Canada:

ICES-003 Class A

Japan:

VCCI Class A

Taiwan (BSMI)

CNS 13438 Class A

Korea

KN 35:2015

Korea

KN 32 Class A

Aus/NZ

AS/NZS CISPR 32 Class A

Worldwide:

VCCI Class A

CISPR 11 Class A

CISPR 22 Class A

CISPR 32 Class A

CISPR 24:2010

Lasers

EN 60825-1:2007 / IEC 60825-1:2007 Class 1

Class 1 Laser Products / Laser Klasse 1

(Applicable for accessories - Optical Transceivers only)

Industry Specific Compliance

Industrial

EN 61000-6-2 Industrial Immunity

EN 61000-6-4 Industrial Emissions

EN 61000-6-1 Light Industrial Immunity

Power Substation

IEEE 1613 Electric Power Stations

Communications Networking

EN/IEC 61850-3 Electric Substations

Communications Networking

Railway Application

EN 50121-3-2 Railway - Apparatus for Rolling Stock

EN 50121-4 Railway - Signaling and Telecommunications Apparatus

EN 50155/IEC 60571 - Railway applications, Rolling stock, Electronic equipment

Traffic Control System

NEMA TS 2-2016

Protection Standard

EN 60529 IP30

Immunity

Generic

EN 55035, CISPR 35, KN35

EN

EN 55035, CISPR 35

ESD

EN 61000-4-2 (air - 15kV, contact - 8kV)

Radiated

EN 61000-4-3 (10V/m UTP, 20V/m STP)

EFT/Burst

EN 61000-4-4

4kV (1kV UTP, 4kV STP)

Surge

EN 61000-4-5

2kV/4kV(UTP)

Conducted

EN 61000-4-6 (3Vrms UTP, 10Vrms STP)

Power Frequency Magnetic Field

EN 61000-4-8 (100A/m 1min,1000A/m 1sec)

Damped Oscillatory Magnetic Field

EN 61000-4-10 (100A/m)

Conducted CM Disturbances

EN 61000-4-16 (30V, Cont/300V, 1 sec)

Ripple Immunity DC Power

EN 61000-4-17 (10%)

Damped Oscillatory Wave

EN 61000-4-18 (2.5kV, 1MHz)

Voltage Dips and interruptions

EN 61000-4-29; EN 61000-4-11 (Level 3)

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

Dynamics

Vibration

IEC 60068-2-6 & 64 (operation & nonoperation)

Shock

IEC 60068-2-27 (Operational Shock, 30G, 18ms, Half-Sine)

IEC 60068-2-27 (Non-operational Shock, 50G, 11ms, Trapezoidal)

IEC 60068-2-31 (Non-operational Free Fall, 100mm)

IEC 60068-2-31 (Non-operational Topple)

Railway Application

Compliance to EN 50155 (mounting) & IEC 61373

Mounting and Enclosure

Mounts to an EIA/TIA standard 19" telco rack.

Mounting brackets included with product.

Wire

Power Input

C15 Connector

Alarm connector

AWG 18-16

PoE Budget

240W no derating.
