ASUS MB PRIME J4005I-C, Intel Celeron® dual core J4005, 2xDDR4, mini-ITX

Name: ASUS MB PRIME J4005I-C, Intel Celeron® dual core J4005, 2xDDR4, mini-ITX
Brand: Asus
SKU: 417897
Price: 2299 CZK
Availability: InStock

Kód: 417897Prodejní číslo: 90MB0W90-M0EAY1

Výrobce: Asus

ASUS MB PRIME J4005I-C, Intel Celeron® dual core J4005, 2xDDR4, mini-ITX

+ 2
dalších

Popis

Parametry

Diskuze

Hodnocení

Detailní popis produktu

ASUS MB PRIME J4005I-C, Intel Celeron® dual core J4005, 2xDDR4, mini-ITX

PRIME J4005I-C

Low-power, fan-less motherboard for Intel Celeron® SoC J4005 processor, with 2 x DDR4 2400/2133 MHz, 5X Protection II and HDMI/D-Sub/LVDS support.

Proven quality - 5X Protection. 1000+ compatible devices. 8000+ validation hours.
AI Suite 3:One-stop access to innovative ASUS features
New UEFI BIOS and EZ Mode:Friendlier, easier, and more intuitive with helpful info added

TECHNICAL SPECFICATION

Memory	2 x U-DIMM, Max. 8GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory 1 Dual Channel Memory Architecture Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic	Integrated Graphics Processor Multi-VGA output support : HDMI/RGB/LVDS ports - Supports HDMI with max. resolution 4096 x 2304 @ 24 Hz - Supports LVDS with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 512 MB (for iGPU exclusively) Supports up to 3 displays simultaneously
Storage	1 x M.2 Socket 3, , with M Key, type 2260/2280 storage devices support (PCIE mode) 2 x SATA 6Gb/s port(s),
LAN	Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
Audio	Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *2 - Supports : Jack-detection, Front Panel Jack-retasking
USB Ports	Built-in Controller: 4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 2 at mid-board) Built-in Controller: 2 x USB 2.0 port(s) (2 at back panel, ) GL852G USB Hub: 4 x USB port(s) (4 at mid-board)
Special Features	ASUS 5X Protection II: - ASUS LANGuard - 2.5X higher surge tolerance - ASUS Overvoltage Protection - World-class circuit-protecting power design - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability - ASUS ESD Guards - Electrostatic discharge protection ASUS Exclusive Features: - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution: - Stylish Fanless Design Heat-sink solution ASUS EZ DIY: - ASUS EZ Flash 3 - ASUS MyLogo 2 - ASUS UEFI BIOS EZ Mode ASUS Q-Design: - ASUS Q-DIMM
Operating System Support	Windows® 10 64-bit Linux

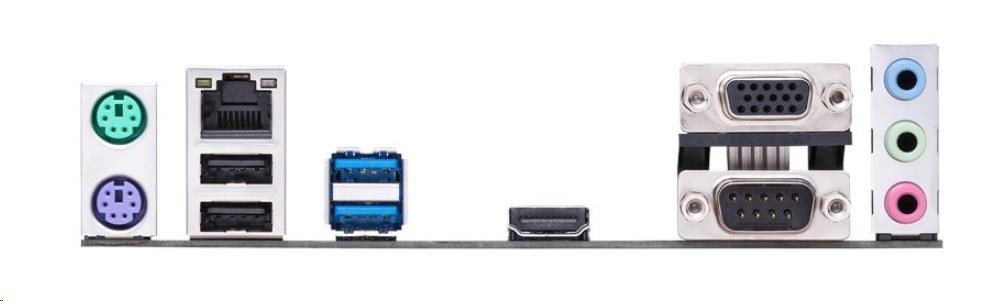

Back I/O Ports	1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 1 , 2 x USB 2.0 1 x COM port(s) 3 x Audio jack(s)
Internal I/O Ports	2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 1 with E Key, type 2230 WiFi/BT devices support or PCIe/USB mode 1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (PCIe x 2 mode) 1 x LPT header 1 x COM port(s) connector(s) 2 x SATA 6Gb/s connector(s) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Chassis Intrusion connector(s) 1 x Clear CMOS jumper(s) 1 x Panel off header 1 x LVDS connector(s) 1 x System panel connector 1 x Flat panel display brightness connector 1 x Display panel VCC power selector 1 x Speaker connector
Accessories	User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 2 x M.2 Screw Package
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information, ErP ready
Manageability	WfM 2.0, DMI 2.0, WOL by PME, PXE
Support Disc	Drivers ASUS Utilities EZ Update Anti-virus software (OEM version)
Form Factor	Thin Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm )
Note	1 We recommend that you use 8GB or less memory modules. 2 Use a chassis with HD audio module in the front panel to support an 8-channel audio output

Parametry produktu

COM port	Ano
LPT port	Ano
Socket (patice)	Integrovaný procesor
Formát základní desky	Mini-ITX
Chipset	Intel
Technologie paměti RAM	DDR4
PCI Express x16	0
Podpora RAID	Bez RAID podpory
3.5mm Jack	Ano
Bezdrátové připojení	bez
Pro procesory	Integrovaný procesor
Počet paměťových slotů	2
DisplayPort	0
TPM	Ne
USB 2	2
USB 3	4
PCI	0
M.2 slot	2
SATA 3	2
VGA	1
DVI	0
HDMI	1
Led Header	Ne
PCI Express x1	0
USB C	0
LAN	1Gbit/s

Více parametrů

Méně parametrů

Parametry produktu

COM port	Ano
LPT port	Ano
Socket (patice)	Integrovaný procesor
Formát základní desky	Mini-ITX
Chipset	Intel
Technologie paměti RAM	DDR4
PCI Express x16	0
Podpora RAID	Bez RAID podpory
3.5mm Jack	Ano
Bezdrátové připojení	bez
Pro procesory	Integrovaný procesor
Počet paměťových slotů	2
DisplayPort	0
TPM	Ne
USB 2	2
USB 3	4
PCI	0
M.2 slot	2
SATA 3	2
VGA	1
DVI	0
HDMI	1
Led Header	Ne
PCI Express x1	0
USB C	0
LAN	1Gbit/s

Diskuze k produktu ASUS MB PRIME J4005I-C, Intel Celeron® dual core J4005, 2xDDR4, mini-ITX

Máte k produktu dotaz? Zeptejte se nás.

Hodnocení produktu ASUS MB PRIME J4005I-C, Intel Celeron® dual core J4005, 2xDDR4, mini-ITX

0 hodnocení

Přidat hodnocení k produktu

Naposledy navštívené

ASUS MB PRIME J4005I-C, Intel Celeron® dual core J4005, 2xDDR4, mini-ITX

Pro procesory:Integrovaný procesor; Socket (patice):Integrovaný procesor; Chipset:Intel; Počet paměťových slotů:2; Technologie paměti RAM:DDR4; Formát základní desky:Mini-ITX; Podpora RAID:Bez RAID podpory; PCI Express x16:0; PCI Express x1:0; USB 2:2; USB 3:4; USB C:0; SATA 3:2; PCI:0; M.2 slot:2; 3.5mm Jack; LAN:1Gbit/s; VGA:1; DVI:0; HDMI:1.
