ASUS MB Sc AM4 TUF GAMING B550M-PLUS, AMD B550, 4xDDR4, 1xDP, 1xHDMI, mATX
Kód: 431114Prodejní číslo: 90MB14A0-M0EAY0|
Výrobce: Asus
Popis
Parametry
Diskuze
Hodnocení
Detailní popis produktu

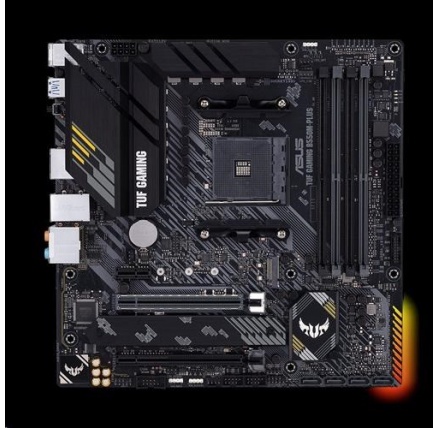

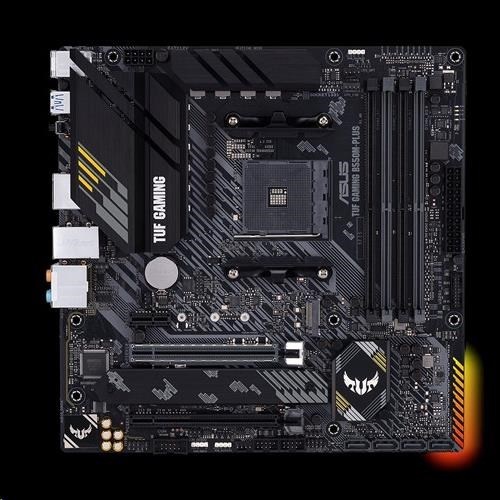

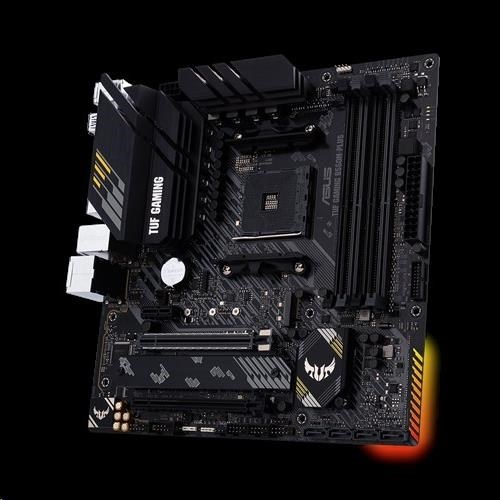

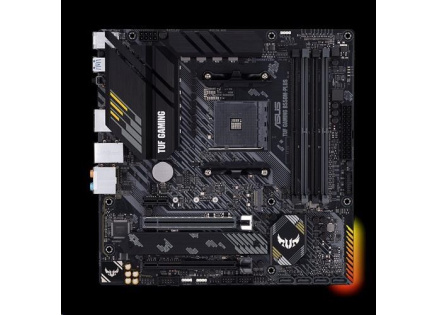

ASUS MB Sc AM4 TUF GAMING B550M-PLUS, AMD B550, 4xDDR4, 1xDP, 1xHDMI, mATX
TUF GAMING B550M-PLUS
AMD B550 (Ryzen AM4) micro ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB lighting support
- AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ Processors
- Enhanced power solution: 8+2 DrMOS power stages, ProCool connector, military-grade TUF components, and Digi+ VRM for maximum durability
- Comprehensive cooling: VRM heatsinks, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 2+ utility
- Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C support
- Made for online gaming: 2.5 Gb Ethernet, TUF LANGuard and TurboLAN technology
- Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
- AI noise-canceling microphone: Provides crystal-clear in-game voice communication
TECHNICAL SPECIFICATIONS
| CPU | Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors * * Refer to www.asus.com for CPU support list |
| Chipset | AMD B550 |
| Memory | 3rd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphic | 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60HZ) |
| Multi-GPU Support | Supports AMD 2-Way CrossFireX Technology |
| Expansion Slots | 3rd Gen AMD Ryzen™ Processors 1 x PCIe 4.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x1 * Support PCIe bifurcation for RAID on CPU function. |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports 3rd Gen AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| LAN | Realtek RTL8125B 2.5Gb Ethernet TUF LANGuard |
| Audio | Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Optical S/PDIF out port(s) at back panel - Audio cover - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors |
| USB Ports | Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) |
| Software Features | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - AI Noise Cancelling Microphone AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| ASUS Special Features | ASUS TUF PROTECTION - ASUS DIGI+ VRM (Digital power design with Dr. MOS) - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - TUF LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Procool AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header |

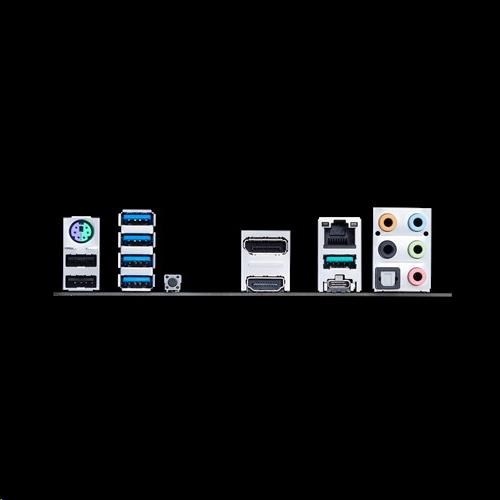

| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (2.5G) port(s) 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®) 4 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x BIOS FlashBack™ Button(s) |
| Internal I/O Ports | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 4.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector |
| Accessories | User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x TUF Gaming Sticker 1 x TUF Certification card(s) 1 x M.2 SSD screw package(s) 1 x M.2 Rubber Package(s) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
.
Parametry produktu
| COM port | Ano |
| LPT port | Ne |
| Socket (patice) | Socket AM4 |
| Formát základní desky | micro ATX |
| Chipset | AMD |
| Chipset | AMD B550 |
| Technologie paměti RAM | DDR4 |
| PCI Express x16 | 2 |
| Podpora RAID | 1 |
| Podpora RAID | 10 |
| 3.5mm Jack | Ano |
| Bezdrátové připojení | Wi-Fi |
| Pro procesory | AMD |
| Počet paměťových slotů | 4 |
| DisplayPort | 1 |
| TPM | Ano |
| USB 2 | 6 |
| USB 3 | 8 |
| PCI | 0 |
| M.2 slot | 2 |
| SATA 3 | 4 |
| VGA | 0 |
| DVI | 0 |
| HDMI | 1 |
| Led Header | Ano |
| PCI Express x1 | 1 |
| USB C | 1 |
Parametry produktu
| COM port | Ano |
| LPT port | Ne |
| Socket (patice) | Socket AM4 |
| Formát základní desky | micro ATX |
| Chipset | AMD |
| Chipset | AMD B550 |
| Technologie paměti RAM | DDR4 |
| PCI Express x16 | 2 |
| Podpora RAID | 1 |
| Podpora RAID | 10 |
| 3.5mm Jack | Ano |
| Bezdrátové připojení | Wi-Fi |
| Pro procesory | AMD |
| Počet paměťových slotů | 4 |
| DisplayPort | 1 |
| TPM | Ano |
| USB 2 | 6 |
| USB 3 | 8 |
| PCI | 0 |
| M.2 slot | 2 |
| SATA 3 | 4 |
| VGA | 0 |
| DVI | 0 |
| HDMI | 1 |
| Led Header | Ano |
| PCI Express x1 | 1 |
| USB C | 1 |
Diskuze k produktu ASUS MB Sc AM4 TUF GAMING B550M-PLUS, AMD B550, 4xDDR4, 1xDP, 1xHDMI, mATX
Máte k produktu dotaz? Zeptejte se nás.Hodnocení produktu ASUS MB Sc AM4 TUF GAMING B550M-PLUS, AMD B550, 4xDDR4, 1xDP, 1xHDMI, mATX
0
0 hodnocení
Přidat hodnocení k produktu
Naposledy navštívené
Zdarma
ASUS MB Sc AM4 TUF GAMING B550M-PLUS, AMD B550, 4xDDR4, 1xDP, 1xHDMI, mATXFormát základní desky:micro ATX; Chipset:AMD B550, AMD; Socket (patice):Socket AM4; Pro procesory:AMD; Technologie paměti RAM:DDR4; Počet paměťových slotů:4; M.2 slot:2; SATA 3:4; Podpora RAID:1, 10; PCI Express x16:2; PCI Express x1:1; PCI:0; Bezdrátové připojení:Wi-Fi; DisplayPort:1; HDMI:1; VGA:0; DVI:0; USB 2:6; USB 3:8; USB C:1; COM port; 3.5mm Jack.
3 409 Kč
