ASUS MB Sc LGA1700 PRIME H610M-K DDR4, Intel H610, 2xDDR4, 1xHDMI, 1xVGA, mATX
Kód: 431636Prodejní číslo: 90MB1A10-M0EAY0|
Výrobce: Asus
Popis
Parametry
Diskuze
Hodnocení
Detailní popis produktu
ASUS MB Sc LGA1700 PRIME H610M-K DDR4, Intel H610, 2xDDR4, 1xHDMI, 1xVGA, mATX
PRIME H610M-K D4
TECHNICAL SPECIFICATIONS
| CPU | Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* |
| Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** | |
| * Refer to www.asus.com for CPU support list. | |
| ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Intel® H610 Chipset |
| Memory | 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports Intel® Extreme Memory Profile (XMP) | |
| * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. | |
| Graphics | 1 x D-Sub |
| 1 x HDMI® port** | |
| * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. | |
| ** Supports 4K@60Hz as specified in HDMI 2.1. | |
| Expansion Slots | Intel® 12th Gen Processors |
| 1 x PCIe 4.0 x16 slot | |
| Intel® H610 Chipset | |
| 1 x PCIe 3.0 x1 slot | |
| Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports |
| Intel® H610 Chipset | |
| M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) | |
| 4 x SATA 6Gb/s ports | |
| * The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used. | |
| Ethernet | 1 x Realtek 1Gb Ethernet |
| USB | Rear USB (Total 6 ports) |
| 2 x USB 3.2 Gen 1 ports (2 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| Front USB (Total 4 ports) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 1 x USB 2.0 header supports additional 2 USB 2.0 ports | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
| Audio Features | |
| - Audio Shielding | |
| - Dedicated audio PCB layers | |
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |

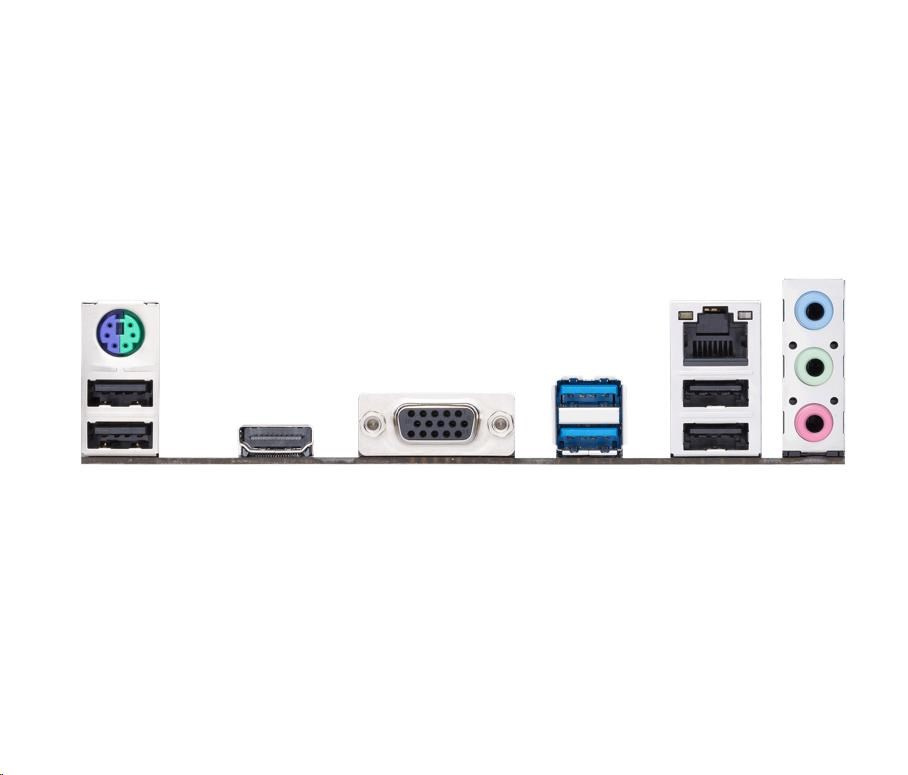

| Back Panel I/O Ports | 2 x USB 3.2 Gen 1 ports (2 x Type-A) |
| 4 x USB 2.0 ports (4 x Type-A) | |
| 1 x D-Sub port | |
| 1 x HDMI® port | |
| 1 x Realtek 1Gb Ethernet port | |
| 3 x Audio jacks | |
| 1 x PS/2 Keyboard/Mouse combo port | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin Chassis Fan header | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| Storage related | |
| 1 x M.2 slot (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 1 x USB 2.0 header supports additional 2 USB 2.0 ports | |
| Miscellaneous | |
| 1 x RGB header | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x S/PDIF Out header | |
| 1 x Speaker header | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 10-1 pin System Panel header | |
| Special Features | ASUS 5X PROTECTION III |
| - DIGI+ VRM | |
| - LANGuard | |
| - Overvoltage Protection | |
| - SafeSlot Core | |
| - Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| - Q-DIMM | |
| - Q-Slot | |
| ASUS Thermal Solution | |
| - Aluminum heatsink design | |
| ASUS Lighting Control | |
| - RGB header | |
| Software Features | ASUS Exclusive Software |
| Armoury Crate | |
| AI Suite 3 | |
| - Performance And Power Saving Utility | |
| TurboV EVO | |
| EPU | |
| DIGI+ VRM | |
| Fan Xpert | |
| ASUS CPU-Z | |
| Norton Anti-virus software (Free Trial version) | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x I/O Shield | |
| 1 x M.2 ANCHOR | |
| Installation Media | |
| 1 x Support DVD | |
| Documentation | |
| 1 x User guide | |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | mATX Form Factor |
| 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm ) |
Parametry produktu
| COM port | Ano |
| LPT port | Ne |
| Socket (patice) | Socket 1700 |
| Formát základní desky | micro ATX |
| Chipset | Intel H610 |
| Technologie paměti RAM | DDR4 |
| PCI Express x16 | 1 |
| Podpora RAID | Bez RAID podpory |
| 3.5mm Jack | Ano |
| Bezdrátové připojení | bez |
| Pro procesory | Intel |
| Počet paměťových slotů | 2 |
| TPM | Ano |
| USB 2 | 6 |
| USB 3 | 4 |
| PCI | 0 |
| M.2 slot | 1 |
| SATA 3 | 4 |
| VGA | 1 |
| DVI | 0 |
| HDMI | 1 |
| Led Header | Ano |
| PCI Express x1 | 1 |
| USB C | 0 |
| LAN | 1Gbit/s |
Parametry produktu
| COM port | Ano |
| LPT port | Ne |
| Socket (patice) | Socket 1700 |
| Formát základní desky | micro ATX |
| Chipset | Intel H610 |
| Technologie paměti RAM | DDR4 |
| PCI Express x16 | 1 |
| Podpora RAID | Bez RAID podpory |
| 3.5mm Jack | Ano |
| Bezdrátové připojení | bez |
| Pro procesory | Intel |
| Počet paměťových slotů | 2 |
| TPM | Ano |
| USB 2 | 6 |
| USB 3 | 4 |
| PCI | 0 |
| M.2 slot | 1 |
| SATA 3 | 4 |
| VGA | 1 |
| DVI | 0 |
| HDMI | 1 |
| Led Header | Ano |
| PCI Express x1 | 1 |
| USB C | 0 |
| LAN | 1Gbit/s |
Diskuze k produktu ASUS MB Sc LGA1700 PRIME H610M-K DDR4, Intel H610, 2xDDR4, 1xHDMI, 1xVGA, mATX
Máte k produktu dotaz? Zeptejte se nás.Hodnocení produktu ASUS MB Sc LGA1700 PRIME H610M-K DDR4, Intel H610, 2xDDR4, 1xHDMI, 1xVGA, mATX
0
0 hodnocení
Přidat hodnocení k produktu
Naposledy navštívené
ASUS MB Sc LGA1700 PRIME H610M-K DDR4, Intel H610, 2xDDR4, 1xHDMI, 1xVGA, mATXFormát základní desky:micro ATX; Chipset:Intel H610; Socket (patice):Socket 1700; Pro procesory:Intel; Technologie paměti RAM:DDR4; Počet paměťových slotů:2; M.2 slot:1; SATA 3:4; Podpora RAID:Bez RAID podpory; PCI Express x16:1; PCI Express x1:1; PCI:0; LAN:1Gbit/s; Bezdrátové připojení:bez; HDMI:1; VGA:1; DVI:0; USB 2:6; USB 3:4; USB C:0; COM port.
2 579 Kč
