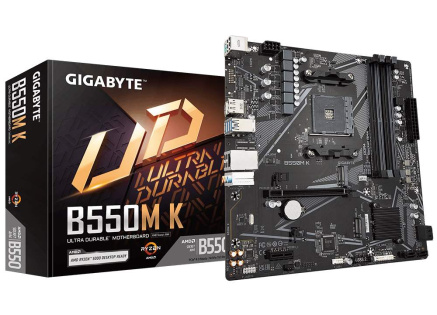

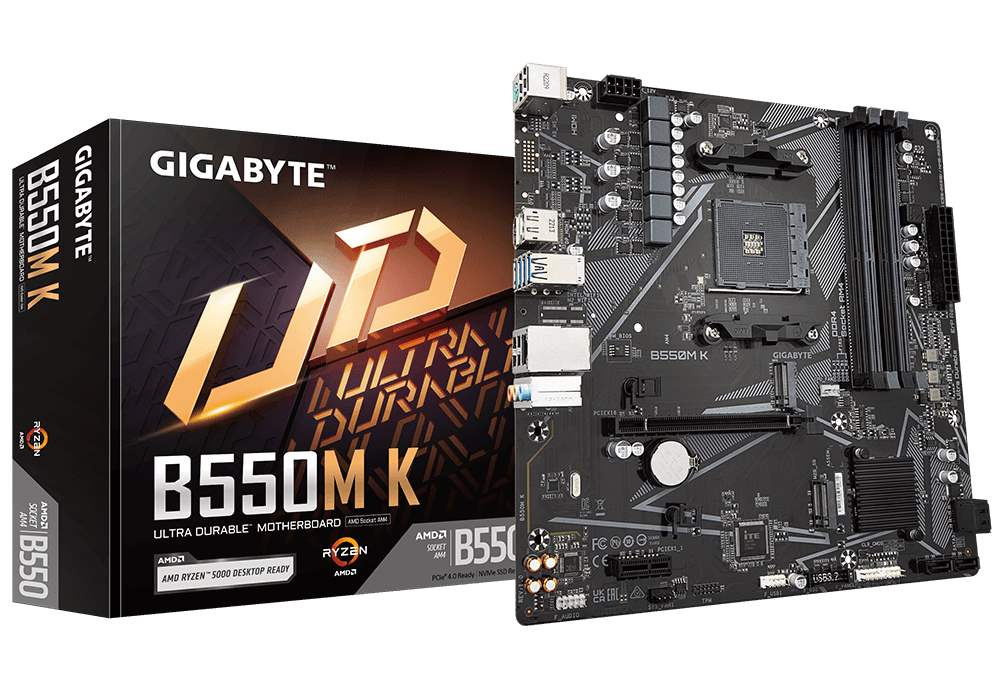

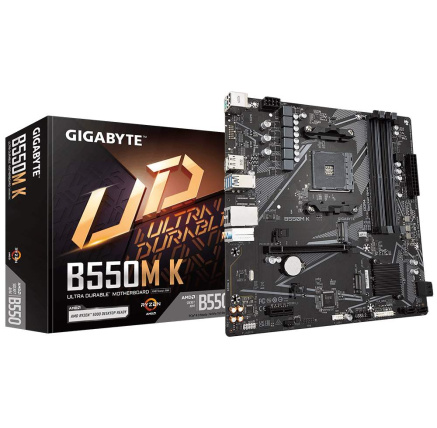

GIGABYTE MB Sc AM4 B550M K, AMD B550, 4xDDR4, 1xDP, 1xHDMI, mATX
Kód: 524753Prodejní číslo: B550M K|
Výrobce: Gigabyte
Popis
Parametry
Diskuze
Hodnocení
Detailní popis produktu
GIGABYTE MB Sc AM4 B550M K, AMD B550, 4xDDR4, 1xDP, 1xHDMI, mATX

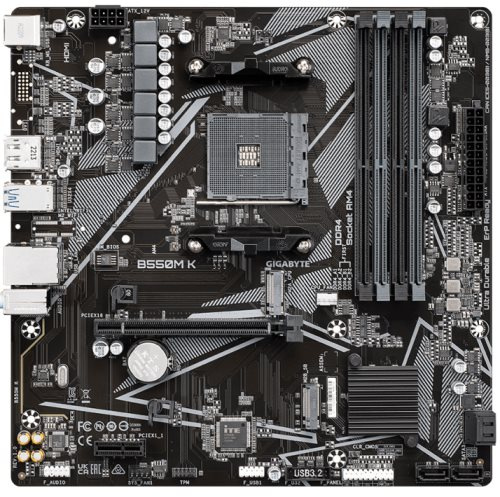

B550M K (rev. 1.0)
AMD B550 Ultra Durable Motherboard with Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, GbE LAN, Smart Fan 5 with FAN STOP
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- GbE LAN with Bandwidth Management
- Rear DisplayPort and HDMI for Multi-display Support
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Anti-Sulfur Resistors Design
TECHNICAL SPECIFICATIONS
| CPU | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors (Please refer "CPU Support List" for more information.) |
| Chipset | AMD B550 |
| Memory | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* * ECC memory (ECC mode) support varies by CPU Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| Integrated Graphics | Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory of 16 GB |
| Expansion Slots | 1 x PCI Express x16 slot, integrated in the CPU: AMD Ryzen™ 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support PCIe 3.0 x16 mode 1 x PCI Express x1 slot, integrated in the Chipset: Supporting PCIe 3.0 x1 mode |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs: Supporting PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 |
| USB | 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper |

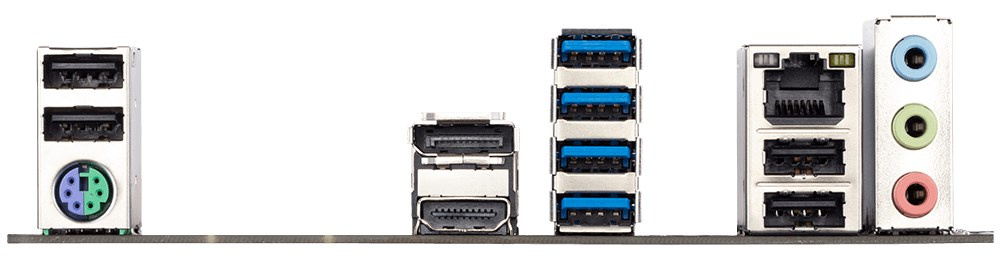

| Back Panel Connectors | 1 x PS/2 keyboard/mouse port 1 x DisplayPort 1 x HDMI port 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
.
Parametry produktu
| Socket (patice) | Socket AM4 |
| Formát základní desky | micro ATX |
| Chipset | AMD |
| Chipset | AMD B550 |
| Technologie paměti RAM | DDR4 |
| PCI Express x16 | 1 |
| Integrovaná LAN karta | 1 |
| Podpora RAID | 1 |
| Podpora RAID | 10 |
| Podpora RAID | 0 |
| Další rozhraní | M.2 |
| 3.5mm Jack | Ano |
| Pro procesory | AMD |
| Počet paměťových slotů | 4 |
| DisplayPort | 1 |
| TPM | Ano |
| USB 2 | 6 |
| USB 3 | 6 |
| PCI | 0 |
| M.2 slot | 2 |
| SATA 3 | 4 |
| VGA | 0 |
| DVI | 0 |
| HDMI | 1 |
| PCI Express x1 | 1 |
| USB C | 0 |
| LAN | 1Gbit/s |
Parametry produktu
| Socket (patice) | Socket AM4 |
| Formát základní desky | micro ATX |
| Chipset | AMD |
| Chipset | AMD B550 |
| Technologie paměti RAM | DDR4 |
| PCI Express x16 | 1 |
| Integrovaná LAN karta | 1 |
| Podpora RAID | 1 |
| Podpora RAID | 10 |
| Podpora RAID | 0 |
| Další rozhraní | M.2 |
| 3.5mm Jack | Ano |
| Pro procesory | AMD |
| Počet paměťových slotů | 4 |
| DisplayPort | 1 |
| TPM | Ano |
| USB 2 | 6 |
| USB 3 | 6 |
| PCI | 0 |
| M.2 slot | 2 |
| SATA 3 | 4 |
| VGA | 0 |
| DVI | 0 |
| HDMI | 1 |
| PCI Express x1 | 1 |
| USB C | 0 |
| LAN | 1Gbit/s |
Diskuze k produktu GIGABYTE MB Sc AM4 B550M K, AMD B550, 4xDDR4, 1xDP, 1xHDMI, mATX
Máte k produktu dotaz? Zeptejte se nás.Hodnocení produktu GIGABYTE MB Sc AM4 B550M K, AMD B550, 4xDDR4, 1xDP, 1xHDMI, mATX
0
0 hodnocení
Přidat hodnocení k produktu
Naposledy navštívené
GIGABYTE MB Sc AM4 B550M K, AMD B550, 4xDDR4, 1xDP, 1xHDMI, mATXFormát základní desky:micro ATX; Chipset:AMD B550, AMD; Socket (patice):Socket AM4; Pro procesory:AMD; Technologie paměti RAM:DDR4; Počet paměťových slotů:4; M.2 slot:2; SATA 3:4; Podpora RAID:0, 1, 10; PCI Express x16:1; PCI Express x1:1; PCI:0; LAN:1Gbit/s; DisplayPort:1; HDMI:1; VGA:0; DVI:0; USB 2:6; USB 3:6; USB C:0; TPM; 3.5mm Jack.
2 178 Kč
