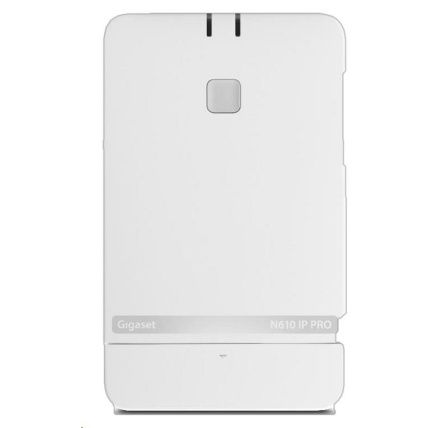

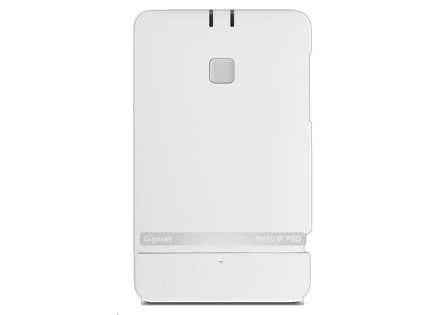

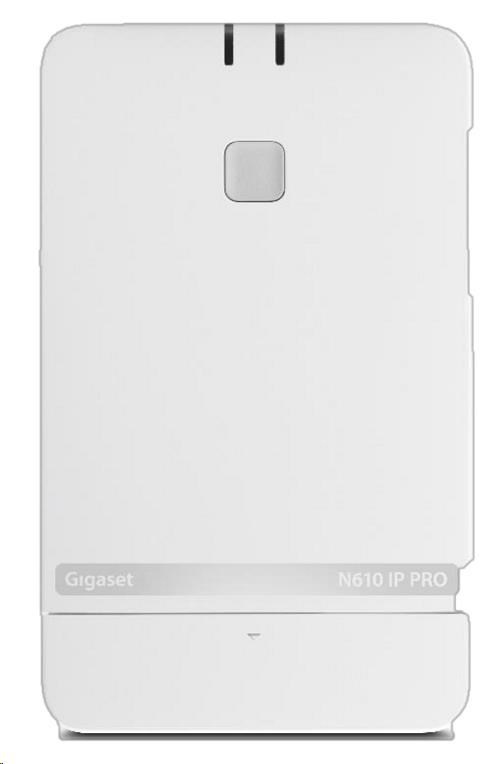

Gigaset N610 PRO

The professional IP DECT base singlecell system for mobile communication in small companies

The Gigaset N610 IP PRO is the choice for cordless telephony convenience for up to 8 users. Up to 8 parallel calls guarantee a high degree of readiness in your business environment. Calls are secure due to SRTP and TLS. Contacts are always at hand on N610's central phonebook, or can be connected via LDAP, XML. With possibility to create own xhtml applications, users can access and control data relevant for business tasks. N610 is compatible to a large number of on-premise and cloud PBXs and easy to setup by autoprovisioning. It can be extended by up to 6 Gigaset repeaters to reach a larger DECT coverage area.

Feature highlights

• Single cell system up to 8 users / SIP accounts / handsets
• Up to 8 parallel calls
• Central Phonebook: 2000 entries
• LDAP(S) phonebook
• Professional zero-touch configuration via auto-provisioning
• IPUI, fixed numbering or via placeholder
• uaCSTA support for CT I-integration
• XHTML applications by customer
• End-to-end signalling and voice encryption
• LEDs on front for status and visual power check
• Software update over the air (SUOTA) I

DECT technology with full security

DECT Technology is secure because its digital and encrypted. Eavesdropping on a conversation is not possible wirelessly. In the N61 0 IP System, SIP Security is added to the security of the network. End to end security is now ensured). Security includes SRTP/SIPS/TLS, LDAP(S) and HTTPS.

Connectivity

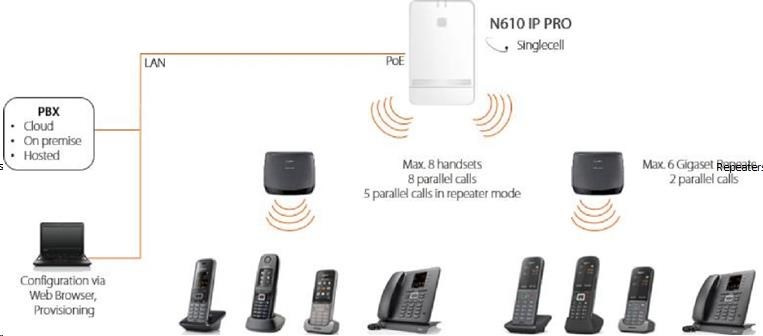

The N610 IP DECT base station is interoperable with many platforms and network providers. All recent professional handsets from Gigaset are compatible with N610 and integrate smoothly. Connect up to 8 handsets and up to 6 DECT repeaters to increase the range of the handsets.

A full and actual list from platforms, providers and handset compatibility can be found on our wiki.

Easy setup and configuration

Administrators benefit from zero touch provisioning. The intuitive web based interface with online help, XML based

Technical data

Phonebook and dialing

• Link to an external LDAP(S) phonebooks (up to 1 0)
• XML directories
• XSI directories (BroadSoft)
• Central directory, hosted by N6 0, 2000 entries
• Search function and reverse lookup online
• Name indication for incoming calls, outgoing calls, missed call list, redial list
• DTMF (SIP Info / RFC 2833, in-band)
• Country specific call progress tones (provisionable)
• CLIP, CNIP: Name indication for incoming calls, outgoing calls, missed call list, redial list
• Name replacement from local phonebook and online directories (auto lookup)
• Calls lists: up to 50 calls (missed, received, dialled)
• XSI Call logs (Broadsoft)
• SIP MWI (Message Waiting Indicator) signalling for voice mall

Software

• Easy configuration via web browser
• Administrator friendly configuration via configuration file
• User specific Auto-provisioning:
• via MAC address
• via XML configuration file

Hardware

• Wall- or ceiling mountable
• Antenna diversity
• 2 Status LEDs
• Reset key
• Ethernet RJ45 10/100 Mbps
• Power over Ethernet: POE IEEE 802.3af class 1
• Two-year warranty

Special features

• Up to 8 accounts (1 for each user)
• MWI signaling configurable
• Failover: DNS SRV, Failover server
• Connect DECT sync/a-sync state with SIP registration (Handset off or out of range / de-register SIP)
• IPUI Provisioning
• xHTML Applications
• uaCSTA
• Local 3-Way Conference
