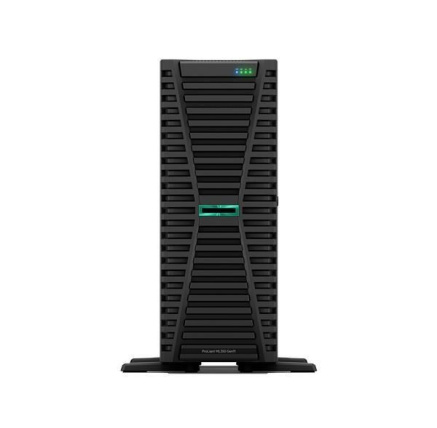

HPE PL ML350g11 4509Y (2.6G/8C) 1x32G (p64706) MR408i-o 8-24SFF 4p1G 1x1000W

SKU Number

P70195-421: HPE ProLiant ML350 Gen11 4509Y 8-core 1P 32GB-R MR408i-o NC BCM5719 8SFF 1000W RPS EMEA Server

Chassis

HPE ProLiant ML350 Gen11 SFF Configure-to-order Server

Backplane

8 SFF

Processor

4509Y (8 core, 2.6 GHz, 125W)

Number of Processors

One with standard heatsink

Memory

32 GB (1x32 GB, 5600 MT/s) Notes: Runs at 4400 MT/s due to processor limitation.

Network Controller

Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE Notes: Slot 15 OCP will be occupied along with CPU 1 MCIO port 1.

Storage Controller

HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller Notes:

- Slot 14 OCP will be occupied, PCIe expansion slot is not required.

- This controller supports up to 8 SAS/SATA/NVMe Drives with performance RAID.

- Smart Storage battery included.

Included Hard Drives

None ship standard, 8 SFF supported

Internal Storage

Default with 8 SFF SAS/SATA/NVMe x1 U.3 Drive Cage Kit (P47217-B21), up to two additional drive cages. Notes: Controller/cable kit is required for additional drive cage.

Optical Drive

Optional. None ship standard.

Expansion Slots

Default with 4 x8 PCIe 5.0 slots with primary riser cage. Upgradable with additional riser kit. Notes: Dual processors are required to support expansion card on PCIe slots 5-10.

Power Supply

P70195-291: 1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

P70195-421: 1x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit

Fans

Default with 3 standard fans, none-hot-plug. Optional Second CPU Fan Kit (P47902-B21) and Redundant Fan Kit (P47219-B21) provide advanced cooling and redundancy functionality in heavier configurations. Notes: Configurations that require fan kits are provided in later sections

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced and HPE OneView Advanced (require licenses)

Security

TPM (Trusted Platform Module)

Form Factor

4U Tower, Optional Tower-to-Rack conversion kit (P47394-B21) to convert the unit to a 5U Rack-mount server.

Warranty

Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response.
