Manhattan HDMI rozdělovač, Extends 1080p Signal up to 120m with a Network Switch and Single Ethernet Cable, černá
Kód: 254960Prodejní číslo: 207959|
Výrobce: Manhattan
Popis
Parametry
Diskuze
Hodnocení
Detailní popis produktu

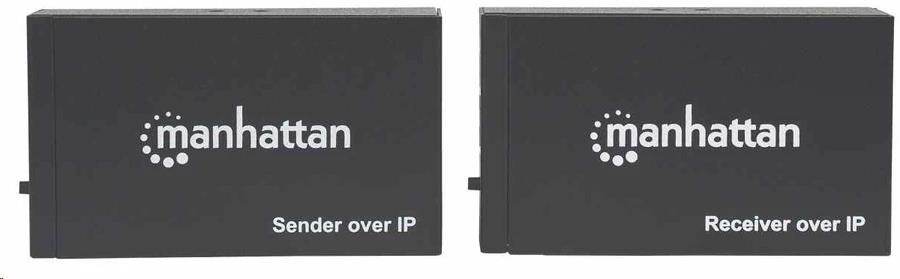

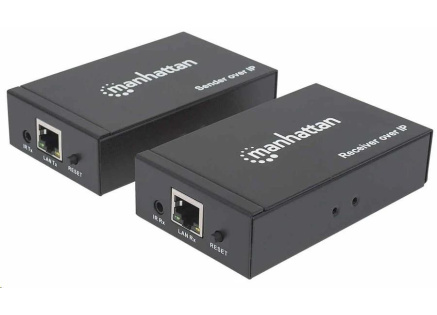

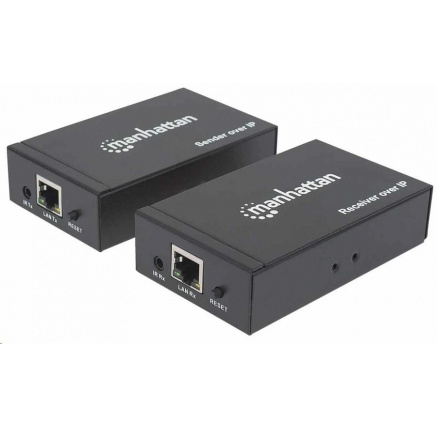

Manhattan HDMI rozdělovač, Extends 1080p Signal up to 120m with a Network Switch and Single Ethernet Cable, černá

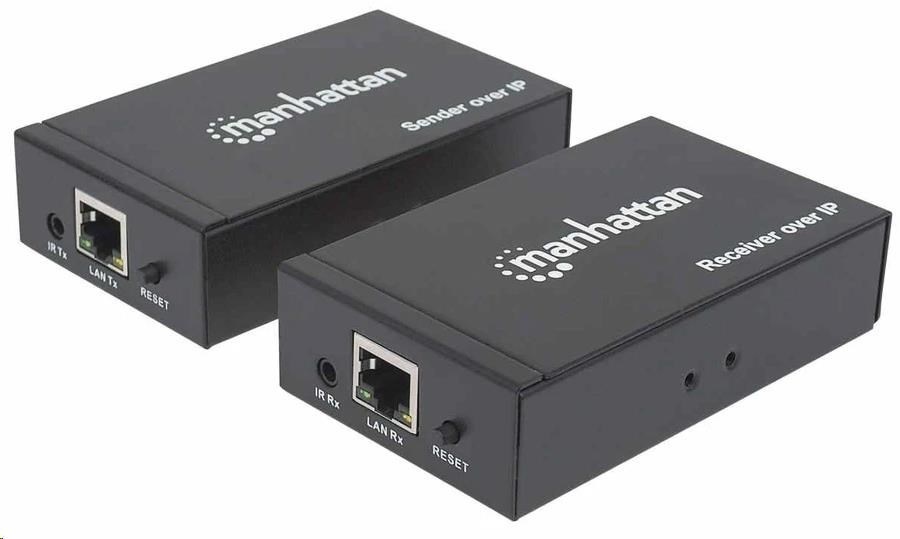

1080p HDMI over IP Extender Splitter Kit
- Extends an HDMI signal from an HDMI source to a High-Definition (HD) monitor or projector up to 120 m (396 ft.) using an unmanaged network switch and an Ethernet cable
- Works in conjunction with existing network infrastructures via TCP/IP
- Supports three connection configurations: direct connect from transmitter (Tx) unit to receiver (Rx) unit; Tx unit to network switch to Rx unit; Tx unit to network switch to many Rx units
- Can connect up to 250 displays to network with additional Rx units
- Supports video amplifier bandwidth up to 165 MHz and 1.65 Gbps per channel (4.95 Gbps total) for 1080p displays
- Supports lossless LPCM 8 channel uncompressed audio formatting and 5.1 surround sound

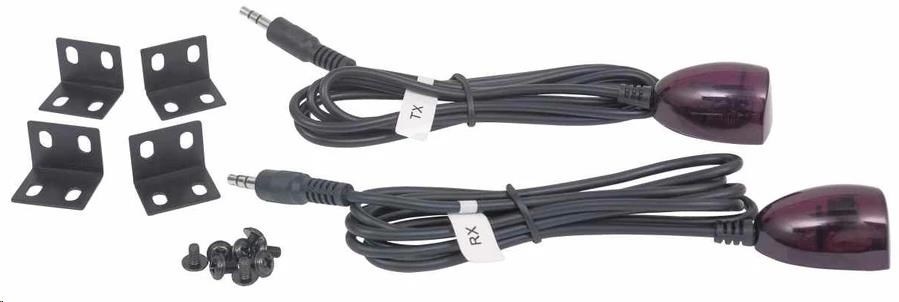

- Offers IR Tx and Rx cables that allow for convenient remote control of HD signal source
- Fully HDCP compliant to protect high-definition content transmission and ensure quality reception
- Plug and play — requires no installation or configuration
- A flexible Audio/Video solution for conference rooms (when sharing ideas and data), digital signage (extending the distances between displays) and other applications
- Compatible with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers and more
- Gold-plated contacts for corrosion-free connections
- Three-year warranty
TECHNICAL SPECIFICATIONS
| Standards and Certifications | HDCP 1.2 TCP/IP DVI 1.0 CTS 1.2 CE FCC RoHS2 |
| Package Contents | 1080p HDMI over IP Extender Splitter Kit (receiver & transmitter modules) Power adapter (two units) IR blaster and receiver (one unit) Wall mounting hardware (two units each) Quick Instruction Guide |
| General | |
| Source-to-switch range | up to 100 m (330 ft.) |
| Switch-to-display range | up to 100 m (330 ft.) Combined distance source-to-switch-to-display 120 m (396 ft.) |
| Cat6 cable | 1080p at 120 m (396 ft.) 720p at 160 m (528 ft.) 480p at 200 m (660 ft.) 1080p at 100 m (330 ft.) 720p at 140 m (462 ft.) 480p at 180 m (594 ft.) |
| Power | 5 VDC / 2 A (cable: 1.4 m [4.5 ft.]) |
| Connections | |

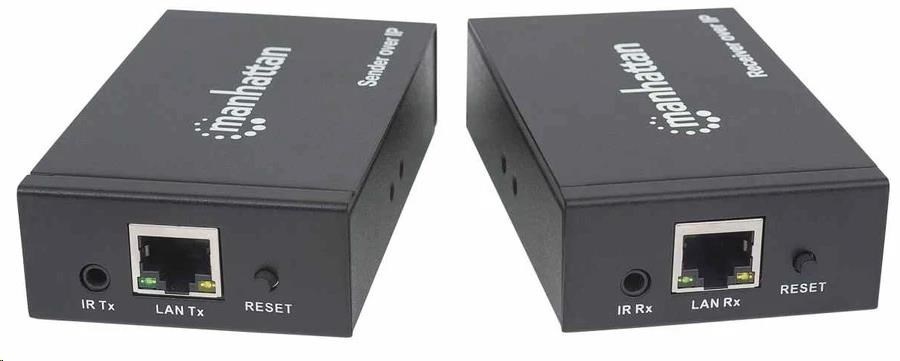

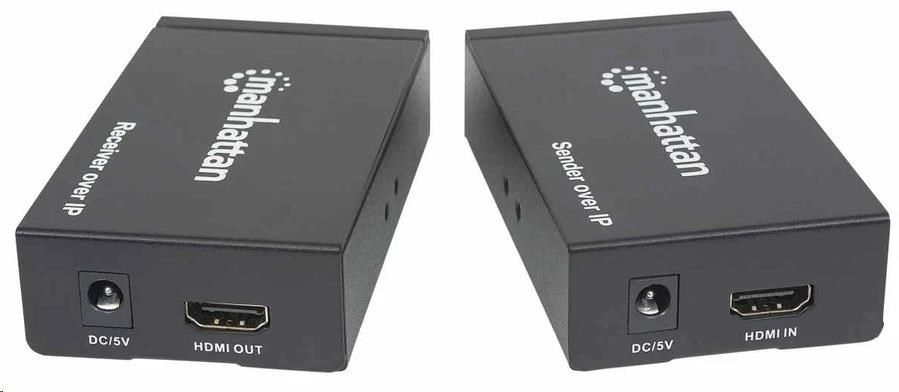

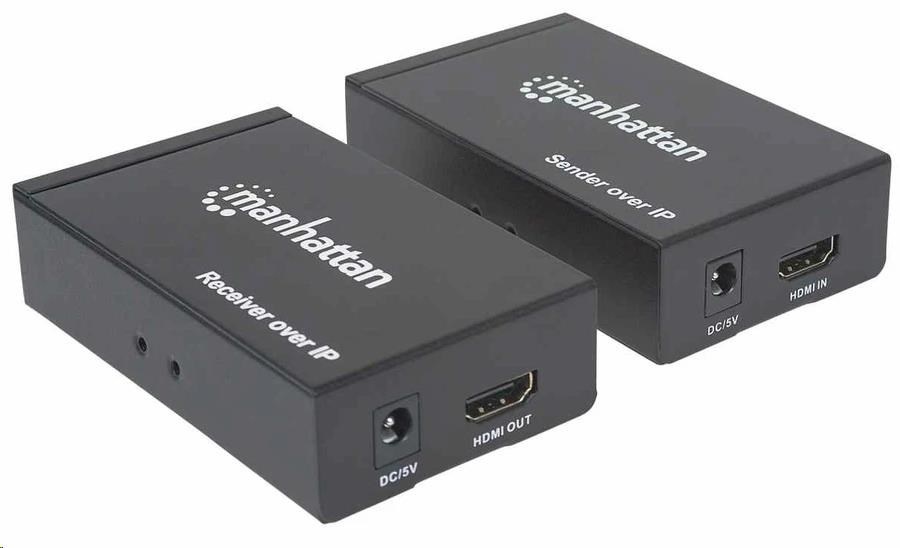

| Connections | One HDMI female, 19-pin (transmitter/receiver) One RJ45 female (transmitter/receiver) One 5 VDC power female, OD 5.5 mm / ID 2.1 mm (transmitter/receiver) Two 3.5 mm IR female (transmitter/receiver) |
| Signal Input/Output | |
| Input video signal | 0.5 – 1.0 V p-p |
| Input DDC signal | 5 V p-p (TTL) |
| Maximum single-link range | 1.65 Gbps and 1080p resolution |
| Output video | HDCP 1.2, DVI 1.0 |
| Frequency | 1.65 Gbps / 165 MHz |
| Supported Video Resolutions | |
| SDTV/HDTV/UHDTV | 480i/576i/480p/576p/720p/1080i/1080p |
| Physical | |
| Dimensions | 100 x 59 x 25 mm (3.9 x 2.3 x 1 in.) |
| Weight | 0.66 kg (1.45 lbs.) |
| Housing | metal |
| Operating Environment | |
| Operation Temperature | 0 – 40°C (32 – 104°F) |
| Storage Temperature | -20 – 60°C (-4 – 140°F) |
| Humidity (noncondensing) | 20 – 96% |
.
Parametry produktu
| Specifikace kabelu / redukce | Adaptér, Redukce |
Parametry produktu
| Specifikace kabelu / redukce | Adaptér, Redukce |
Diskuze k produktu Manhattan HDMI rozdělovač, Extends 1080p Signal up to 120m with a Network Switch and Single Ethernet Cable, černá
Máte k produktu dotaz? Zeptejte se nás.Hodnocení produktu Manhattan HDMI rozdělovač, Extends 1080p Signal up to 120m with a Network Switch and Single Ethernet Cable, černá
0
0 hodnocení
Přidat hodnocení k produktu
Naposledy navštívené
Zdarma
Manhattan HDMI rozdělovač, Extends 1080p Signal up to 120m with a Network Switch and Single Ethernet Cable, černáSpecifikace kabelu / redukce:Adaptér, Redukce.
2 648 Kč
