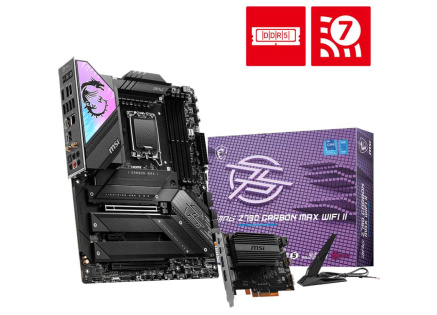

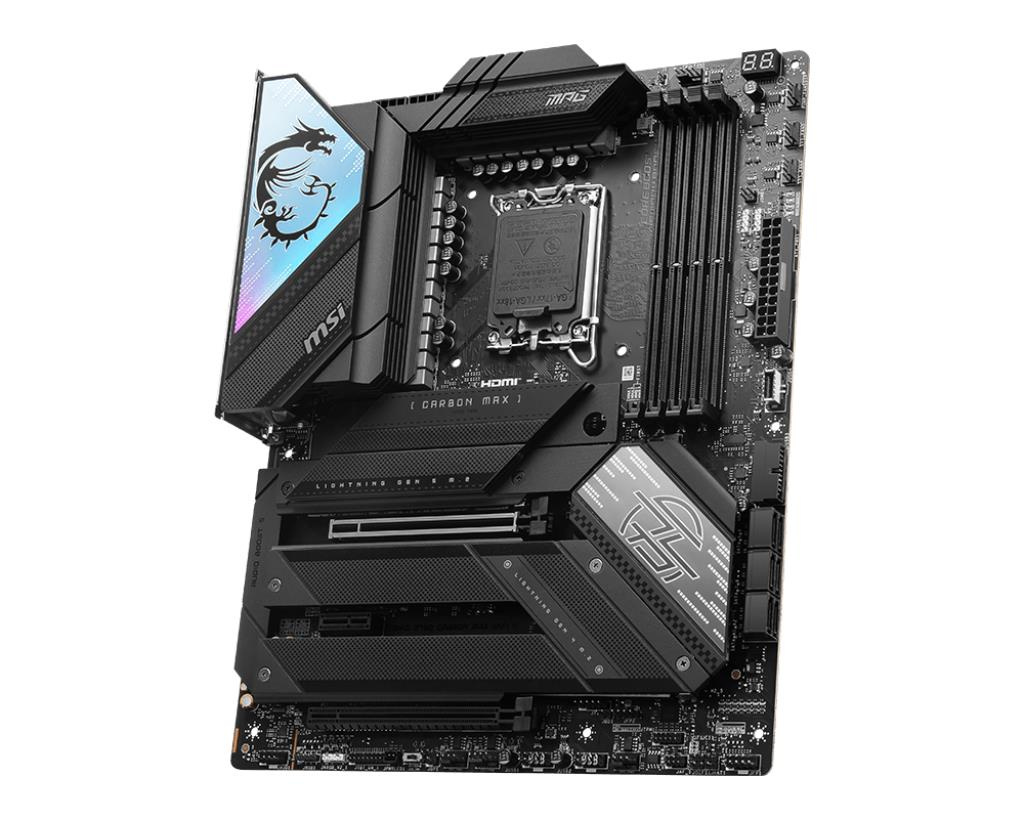

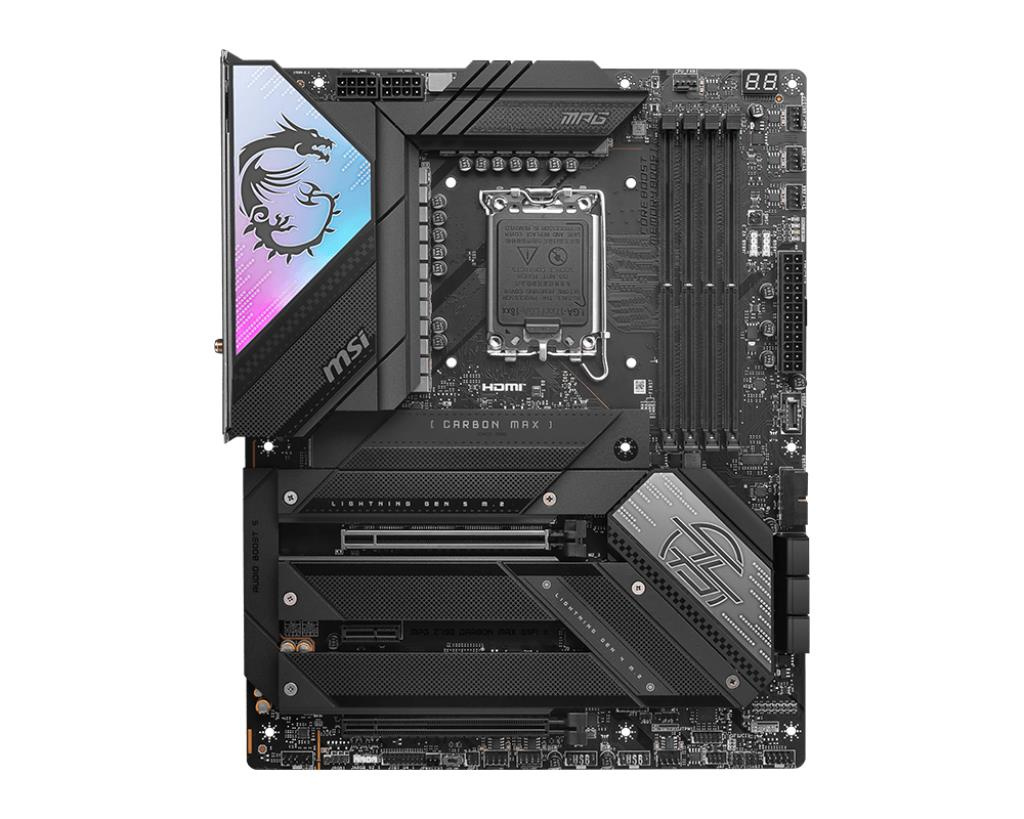

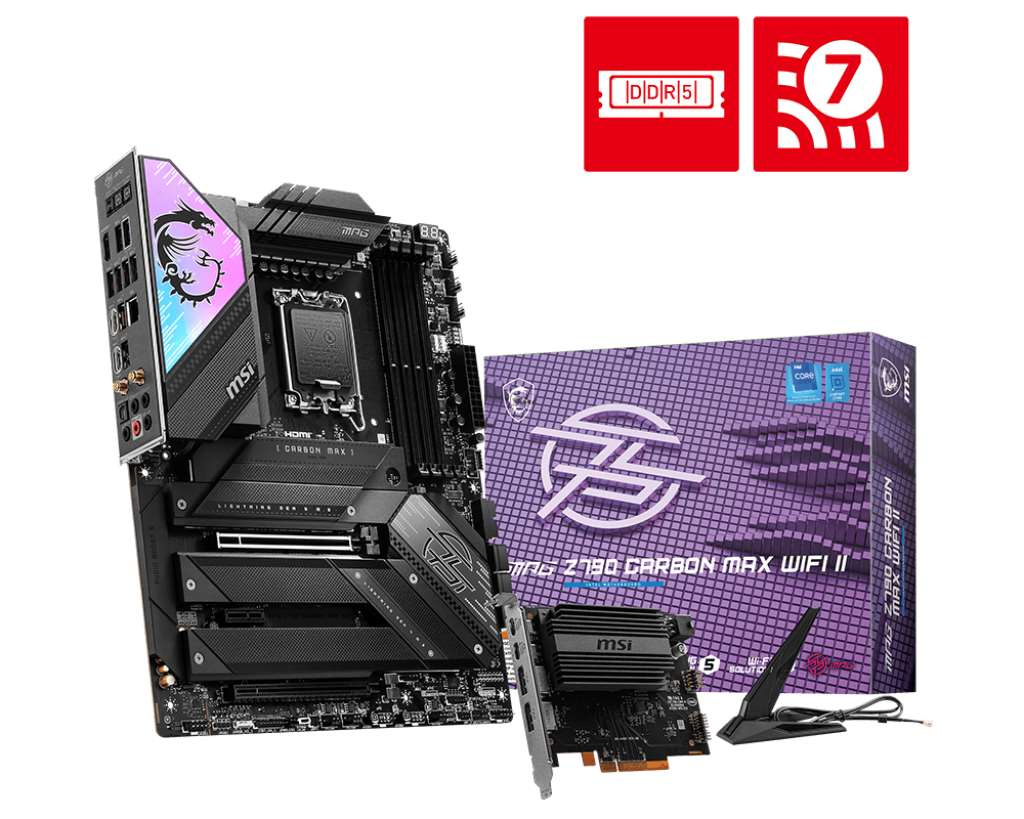

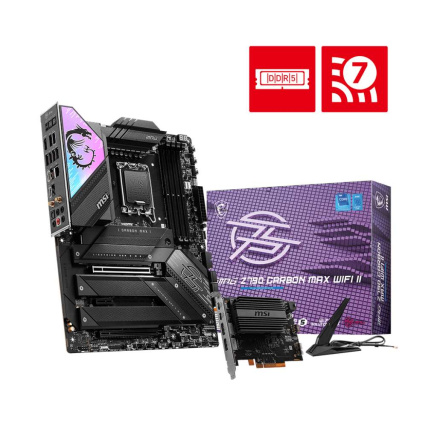

MSI MB Sc LGA1700 MPG Z790 CARBON MAX WIFI II, Intel Z790, 4xDDR5, 1xHDMI, WI-FI
Kód: 2648579Prodejní číslo: MPG Z790 CARBON MAX WIFI IIMSI MB Sc LGA1700 MPG Z790 CARBON MAX WIFI II, Intel Z790, 4xDDR5, 1xHDMI, WI-FI
MSI MPG Z790 CARBON MAX WIFI II
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7800+(OC) MHz
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2
- Enhanced Power Design: Direct 19+1+1 phases power, Core Boost, Memory Boost
- Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- 5G LAN and Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 8-layer PCB made by server grade level material
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
![](https://edshop.edsystem.cz/IMGCACHE/_1712/1712340_0a.jpg)
CPU
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
CHIPSET
INTEL Z790
MEMORY
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
ONBOARD GRAPHICS
1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
STORAGE
5x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
6x SATA 6G
*PCI_E1 slot will be Gen5x8 when installing M.2 SSD in the M2_2 slot.
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
* SATA_A1~A2 do not support RAID function.
EXPANSION SLOTS
2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
AUDIO
Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
LAN
Realtek 5Gbps LAN
WIRELESS LAN
Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
USB
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
6x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
INTERNAL I/O
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
1x ARGB+FAN Header (JAF_1)
1x USB4 card connector (JTBT_U4_1, supports RTD3)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports

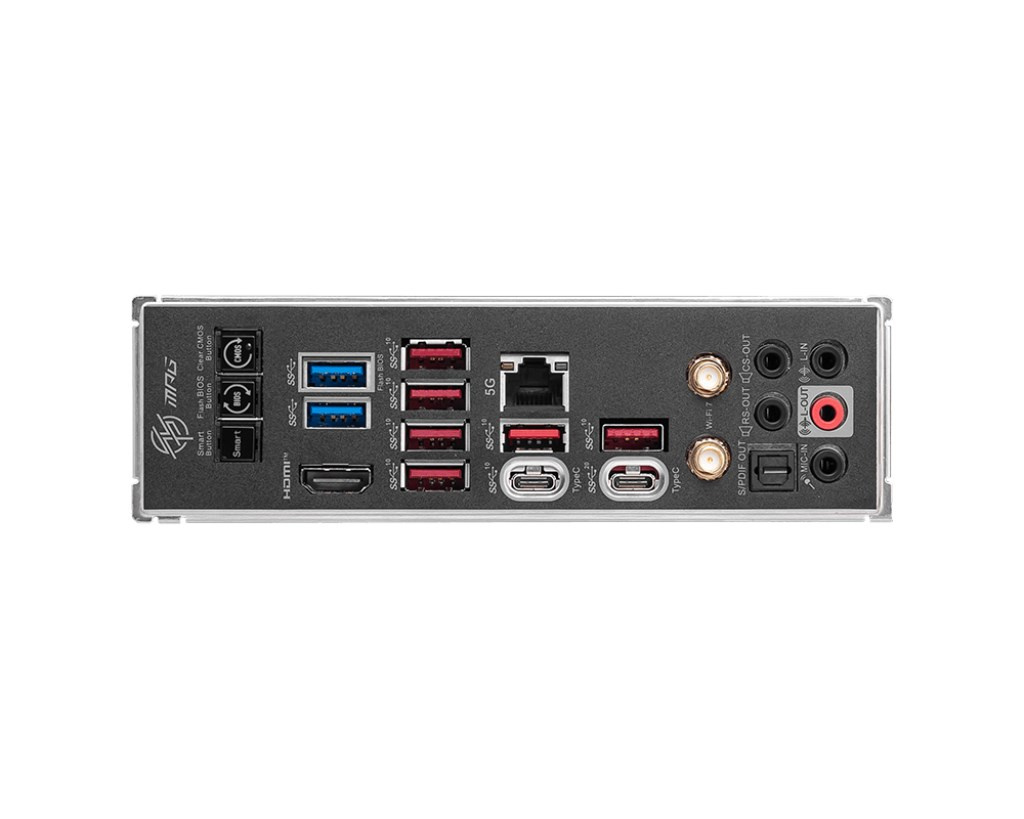

BACK PANEL I/O
2x Flash BIOS / Clear CMOS
2x USB 5 Gbps (Type-A)
5x USB 10Gbps (Type-A)
1x 2.5G LAN
2x Wi-Fi / Bluetooth
5x Audio Connectors
1x Smart Button
1x HDMI™
1x USB 10Gbps (Type-C)
1x USB 20Gbps (Type-C)
1x Optical S/PDIF Out
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
FORM FACTOR
ATX
243.84 x 304.8mm
BOX CONTENT
Cable Sticker
4x EZ M.2 Clip Packages
Wi-Fi Antenna
USB4 PD100W Expansion card
1x USB 4.0 Cable
1x USB 2.0 Cable
1x USB Drive
2x SATA Cables
1x JARGB Extension Cable
1x JRGB Extension Cable (1 to 2)
1x ARGB & Fan Extension Y-Cable
1x Front Panel Cable
LPT port | Ne |
Socket (patice) | Socket 1700 |
Formát základní desky | ATX |
Chipset | Intel Z790 |
Technologie paměti RAM | DDR5 |
PCI Express x16 | 2 |
Podpora RAID | 0 |
Podpora RAID | 1 |
Podpora RAID | 5 |
Podpora RAID | 10 |
3.5mm Jack | Ano |
Bezdrátové připojení | WiFi + Bluetooth |
Pro procesory | Intel |
Počet paměťových slotů | 4 |
DisplayPort | 0 |
TPM | Ano |
USB 2 | 4 |
USB 3 | 10 |
M.2 slot | 5 |
SATA 3 | 6 |
VGA | 0 |
DVI | 0 |
HDMI | 1 |
Led Header | Ano |
PCI Express x1 | 1 |
USB C | 3 |
LAN | 2.5Gbit/s |
LPT port | Ne |
Socket (patice) | Socket 1700 |
Formát základní desky | ATX |
Chipset | Intel Z790 |
Technologie paměti RAM | DDR5 |
PCI Express x16 | 2 |
Podpora RAID | 0 |
Podpora RAID | 1 |
Podpora RAID | 5 |
Podpora RAID | 10 |
3.5mm Jack | Ano |
Bezdrátové připojení | WiFi + Bluetooth |
Pro procesory | Intel |
Počet paměťových slotů | 4 |
DisplayPort | 0 |
TPM | Ano |
USB 2 | 4 |
USB 3 | 10 |
M.2 slot | 5 |
SATA 3 | 6 |
VGA | 0 |
DVI | 0 |
HDMI | 1 |
Led Header | Ano |
PCI Express x1 | 1 |
USB C | 3 |
LAN | 2.5Gbit/s |
